Product Description
Supported by a team of ingenious professionals, we have been affianced in manufacturing and supplying quality tested Heavy Duty Mounted Cum Trailed Offset Disc Harrow. This harrow is manufactured using high grade components by adroit professionals with the aid of sophisticated techniques. The offered harrow is ideal to be used for smoothing out the surface of the soil. Apart from this, the provided Heavy Duty Mounted Cum Trailed Offset Disc Harrow can be bought from us at pocket friendly rates.
Key Points:
- Robust construction
- Enhanced durability
- Less maintenance
- Defect free

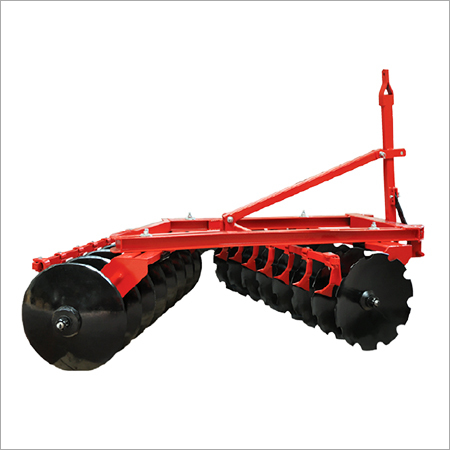

Heavy Duty Mounted Cum Trailed Offset Disc Harrow
SALIENT FEATURES:
- In conformity with the soil conditions it is being produced with 2-3 & 4 version with an option for extra kit for converting it to extra disc plough.
- It is directly mounted to the tractors.
- The extra heavy-duty seamless tubing frame has high trash clearance allowing the plough to operate under heavy crop residue
SPECIFICATION | 8X8 | 8X8 | 8X8 |
Frame | Square Box Frame | Square Box Frame | Square Box Frame |
Gang Bolt | Square Box Frame 32 mm Central square Solid Bar With Split Gangs | Square Box Frame 32 mm Central square Solid Bar With Split Gangs | Square Box Frame 32 mm Central square Solid Bar With Split Gangs |
Length | 1875 mm | 1875 mm | 1875 mm |
Width | 1875 mm | 2100 mm | 2325 mm |
No. Of Discs | 16 | 18 | 20 |
Type Of Disc | Notched (Front / Rear) Plane Optional | Notched (Front / Rear) Plane Optional | Notched (Front / Rear) Plane Optional |
Disc Diameter | 560 mm | 560 mm | 560 mm |
Width Of Cut | 1775 mm | 2000 mm | 2250 mm |
Distance Between Discs | 225 mm | 225 mm | 225 mm |
Bearing Hubs | 8 with Taper Roller Bearing | 8 with Taper Roller Bearing | 8 with Taper Roller Bearing |
All Over Height | 1100 mm | 1100 mm | 1100 mm |
Required Power Hp | 45 Hp & Above | 50 Hp & Above | 55 Hp & Above |
Approx. Weight | 580 Kg. | 610 kg | 640 kg |
