Product Description
Established in the year 2012, we have been engrossed in manufacturing and supplying the finest grade Heavy Duty Spring Loaded Cultivator. The offered product is manufactured using quality assured components by our skilled professionals with the aid of pioneering techniques. This product is suitable to be used for cultivation purpose. In addition, the provided Heavy Duty Spring Loaded Cultivator can be bought from us at pocket friendly rates.
Key Points:
-
Longer life
-
Defect free
-
Corrosion resistance
-
Accurate dimension

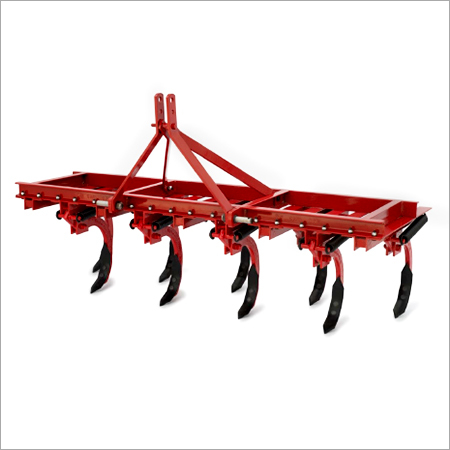

Heavy Duty Spring Loaded Cultivator
ADVANTAGES:
The MAHASHAKTI SPRING LOADED CULTIVATOR (TILLER) is designed for the light and medium soils.
Used for loosening and aerating soil to a depth of 250 mm.
Prepares seed beds quickly and economically
SALIENT FEATURES:
When one tine strikes a hidden object, the others continue to work at correct depth
Particulars | 9 Tine | 11 Tine |
Frame | 75 x 40 mm channel | 75 x 40 mm channel |
Spring | 10 mm WD,50 mm OD | 10 mm WD,50 mm OD |
Tines | 50 x 25 mm forged | 50 x 25 mm forged |
Pairs | 50 x 8 mm flat | 50 x 8 mm flat |
Anchor Pin | 25 mm | 25 mm |
Shovels | 8 mm En-45Reversible | 8 mm En-45Reversible |
Frame Bolt | 12 x 32 High Tensile | 12 x 32 High Tensile |
3 Point Linkage | 65x12 & 50 x 12 mm | 65x16 & 50 x 16 mm |
Height | 530 mm | 530 mm |
Length | 2000 mm | 2450 mm |
Width | 700 mm | 700 mm |
Tiller Pin | 28 mm (Standard) | 28 mm (Standard) |
Required Power Hp | 30 - 35 HP | 40 - 45 HP |
Approx.Weight | 281 Kg. | 315 kg |
