Heavy Duty Trailer Offset Disc Harrow
10000.00 - 100000.00 INR/Piece
Product Details:
- Product Type disc harrow
- General Use agriculture
- Weight (kg) 350 to 650 Kilograms (kg)
- Supply Ability : 1 Piece Per Week
- Click to view more
X
Price And Quantity
- 10000.00 - 100000.00 INR/Piece
- 10 Piece
Product Specifications
- 350 to 650 Kilograms (kg)
- disc harrow
- agriculture
Trade Information
- jaipur
- Cash in Advance (CID), Cheque
- 1 Piece Per Week
- 5-7 Days
- All India
Product Description
We have been engaged in manufacturing and supplying quality assured Hydraulically Reversible MB Plough. This plough is manufactured using excellent grade components by our deft professionals with the aid of sophisticated techniques. The offered plough is ideal to be used for soil cultivation purpose. additionally, the provided Hydraulically Reversible MB Plough can be bought from us at economical rates.
Key Points:
- Sturdiness
- Highly durable
- Perfect finish
- Precise dimension

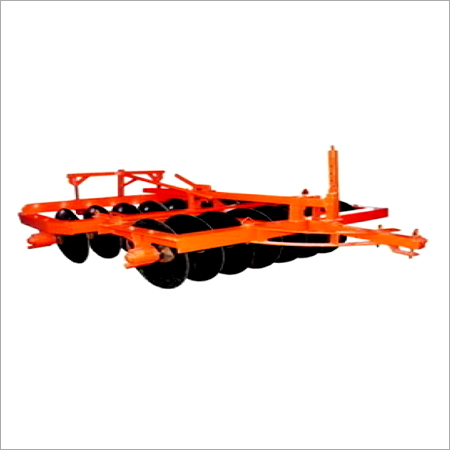

Heavy Duty Trailer Offset Disc Harrow
'THE MAHASHAKTI TRAILED HEAVY DUTY OFFSET DISC HARROW' trails behind the tractor and because of heavy design and weight can effectively break up heavy clods. And when green manures, trash or other surface growth is cross disked, the organic matter is effectively buried and mixed with the soil and decays rapidly into humus. The Harrow has a strong and sturdy main frame with boron steel discs and heavy duty chilled cast iron spools to provide centre weight. Optional wheel can be provided for towing the road.
| FRAME | 75 x 10 mm | 75 x 10 mm | 75 x 10 mm |
| PIPE | Extra heavy Duty | Extra heavy Duty | Extra heavy Duty |
| | (With solid round of 225 mm each side) | (With solid round of 225 mm each side) | (With solid round of 225 mm each side) |
| SPOOL | Extra heavy duty | Extra heavy duty | Extra heavy duty |
| DISC | 660 mm | 660 mm | 660 mm |
| NO. OF DISCS | 12 | 14 | 16 |
| TYPE OF DISC | Front Notched & Rear Plane | Front Notched & Rear Plane | Front Notched & Rear Plane |
| JOINING PLATE | 20 mm | 20 mm | 20 mm |
| APPROX. WEIGHT | 525 Kgs. | 610 kgs | 690 kgs |
Contact Details
B.L Agriculture
F-829, Phase 3rd, Sitapura Industrial Area, Jaipur - 302022, Rajasthan, India
Mr. Ramavtar Jangid
(Proprietor)
 |
