Product Description
To become a leading firm in this field, we have been engaged in manufacturing and supplying quality assured Hydraulically Reversible MB Plough. This plough is manufactured using excellent grade components by our deft professionals with the aid of sophisticated techniques. The offered plough is ideal to be used for soil cultivation purpose. additionally, the provided Hydraulically Reversible MB Plough can be bought from us at economical rates.
Key Points:
-
Sturdiness
-
Highly durable
-
Perfect finish
-
Precise dimension

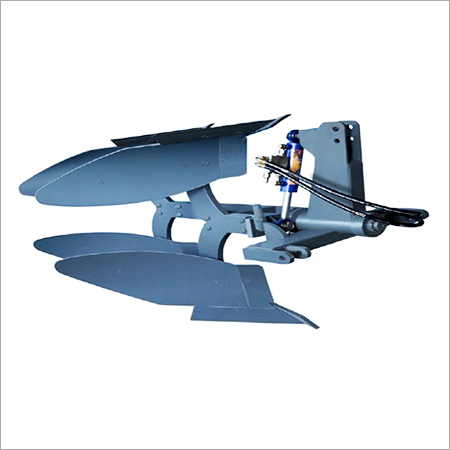

Hydraulically Reversible MB Plough
Salient FEATURES:
- Strong thick walled box Section frame.
- Body extension provision from 2-3 mould boards (pairs).
- Large inter body and under frame clearance.
- Provision for angle adjustment.
- Axle housing pipe.
- Provision of shear bolt.
- Specially heat treated parts and polished mould board.
- Reliable turn over device.
- Adjustable stray rod assembly
- Shock absorbing shaft
Model number | 2 BOTTOM | 3 BOTTOM |
Required Power Hp | 50 – 75 | 80 - 90 |
Total Length Of Low (MM) | 2100 mm | 3000 mm |
No. Of Bottoms | 2 | 3 |
Working Width Of Each Bottom (mm) | 300 / 350 / 400 | 300 / 350 / 400 |
Under Frame Point Clearance (MM) | 600 | 600 |
Horizontal Suction (MM) | 10 to25 | 10 to25 |
Vertical Suction (PENETRATION Pitch) | 10 to 20 | 10 to 20 |
Working Depth (MIN-MAX) Mm | 200 - 330 (8"-13") ±30 mm | 200 - 330 (8"-13") ±30 mm |
Working Width | 600 mm | 900 mm |
Penetration Pitch | 620 mm | 620 mm |
Approx. Weight | 450 Kg. | 660 Kg. |
