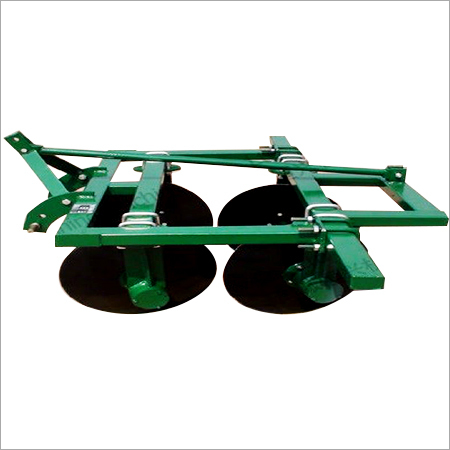

    Mounted Disc Harrow

    Mounted Disc Harrow
    Mounted Disc Harrow
    Send Inquiry
    Product Code : 15
    Brand Name : B. L. AGRICULTURE
    Product Description

    Having immense expertise in this domain, we have been engaged in manufacturing and supplying quality assured Mounted Disc Ridged. The offered ridged is manufactured using excellent grade components by adroit professionals with the aid of sophisticated techniques. This ridges is ideal to be used for preparing soil for plantation purpose. moreover, the provided Mounted Disc Ridged can be bought from us at industry leading prices.

    Key Points:

    • Fine finish
    • Weather proof construction
    • Robust design
    • Highly durable




    Mounted Disc Ridged

    ADVANTAGE

    • The MAHASHAKTI MOUNTED DISC RIDGED can produce ridge with maximum width of 1050 mm.
    • Available in 2 bottoms & 4 bottoms to make one ridge & two ridges respectively.

    FEATURES

    • It has heavy duty 59 sq. box type frame.
    • Boron steel discs.

    Ridge depth & size can be adjusted

    One Row (2 Disc)

    Two Row (4 Disc)

    No. of Discs


    2

    Disc Dia. X thickness (mm)

    660 x 6 Born steel

    660 x 6 Born steel

    Maximum width between ridges (mm)

    1010 mm

    1000 mm

    Working Depth (mm)

    350

    330

    Frame's Width (mm)

    1850

    2525

    Required tractor power (HP)

    35 HP & Above

    60 HP & Above

    Approx. Weight (Kg.)

    200 Kg.

    450 Kg.
