| Home | » Products | » Mounted Disc Plough(MF Type) | » Mounted Disc Plough(MF Type) |

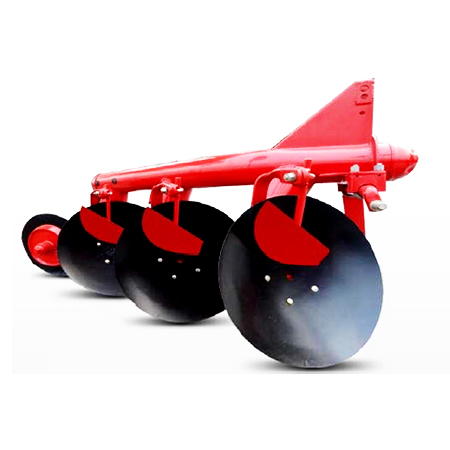

Mounted Disc Plough(MF Type)
With an objective to become leading entity in this domain, we have been engrossed in manufacturing and supplying quality Mounted Disc Plough(MF Type). The provided disc plough is manufactured using quality examined components by our skilled professionals. This disc plough is suitable to be used for soil preparation. Additionally, the offered Mounted Disc Plough(MF Type) can be bought from us at economical rates.
Key Points:
-
Excellent strength
-
Enhanced durability
-
Perfect dimension
-
Corrosion resistance
Mounted Disc Plough (MF Type)
Salient FEATURES:
- In conformity with the soil conditions it is being produced with 2-3 & 4 version with an option for extra kit for converting it to extra disc plough.
- It is directly mounted to the tractors.
- The extra heavy-duty seamless tubing frame has high trash clearance allowing the plough to operate under heavy crop residue.
|
Size |
2 BOTTOM |
3 BOTTOM |
4 BOTTOM |
|
|
150 x 125 Fabricated |
150 x 125 Fabricated |
150 x 125 Fabricated |
|
Frame |
Rectangular frame |
Rectangular frame |
Rectangular frame |
|
Mounted |
CAT-II |
CAT-II |
CAT-II |
|
Length |
1700 mm |
2300 mm |
2700 mm |
|
Width |
825 mm |
1050 mm |
1250 mm |
|
Height |
1200 mm |
1225 mm |
1250 mm |
|
Discs |
660 x 6 mm Boron steel |
660 x 6 mm Boron steel |
660 x 6 mm Boron steel |
|
Discspacing |
550 mm |
550 mm |
575 mm |
|
Colter Disc |
500 x 6 mm boron steel |
500 x 6 mm boron steel |
500 x 6 mm boron steel |
|
Scrapper |
6 mm adjustable |
6 mm adjustable |
6 mm adjustable |
|
Bearings |
2 Nos. Taper roller |
2 Nos. Taper roller |
2 Nos. Taper roller |
|
Width Of Cut |
500 - 550 mm |
875 - 925 mm |
1150 - 1200 mm |
|
Tractor Required |
40 - 45 HP |
50 - 60 HP |
70 - 80 HP |
|
Approx.Weight |
275 Kg. |
400 Kg. |
500 Kg. |
|
 |
