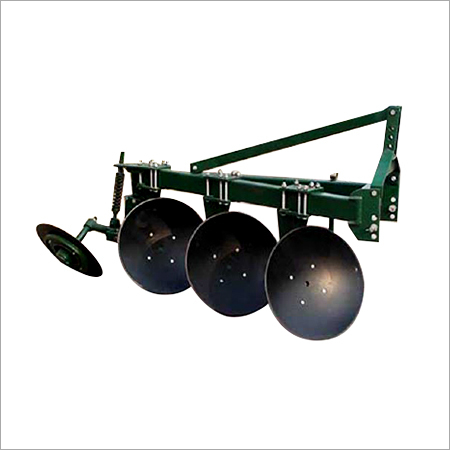

Mounted Disc Plough (Tubular Frame)

Mounted Disc Plough (Tubular Frame)
Mounted Disc Plough (Tubular Frame)
Product Code : 03
Brand Name : maha shakti
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • tubler type
  • General Use
  • agriculture
  • Weight (kg)
  • 150 to 175 Kilograms (kg)
  • Type
  • Agricultural Tools
Product Description

We are a well established firm in this domain, engaged in manufacturing and supplying excellent grade Mounted Disc Plough (Tubular Frame). The offered plough is manufactured using the best grade components by our skilled professionals at modern production unit. This plough is suitable to be used for breaking soil. In addition, the provided Mounted Disc Plough (Tubular Frame) can be bought from us at reasonable rates.
Key Points

  • Robust design
  • Less maintenance
  • Excellent strength
  • Longer life





Mounted Disc Plough (Tubular Frame)

KEY FEATURES

  • In conformity with the soil conditions it is being produced with 2-3-4-5 and 6 Disc (Bottom) version with an option for extra kit for converting it to extra disc plough.
  • It is directly mounted to the tractors.
  • The extra heavy-duty seamless tubing frame has high trash clearance allowing the plough to operate under heavy crop residue.

Size

2 Bottom

3 Bottom

4 Bottom

5 Bottom (4+ 1)

Frame

Heavy Duty seamless Tubular Frame (OD 168 mm with 8 mm thickness)

Heavy Duty seamless Tubular Frame (OD 168 mm with 10 mm thickness)

Heavy Duty seamless Tubular Frame (OD 168 mm with 10 mm thickness)

Heavy Duty seamless Tubular Frame (OD 168 mm with 12 mm thickness)

Mounted

CAT - II

CAT - II

CAT - II

CAT - II

Length

1800 mm

2400 mm

3000 mm

3600 mm

Width

825 mm

1050 m

1250 mm

1500 mm

Height

1200 mm

1225 mm

1250 mm

1250 mm

Discs

660 x 6 mm Boron steel

660 x 6 mm Boron steel

660 x 6 mm Boron steel

660 x 6 mm Boron steel

Disc Spacing

550 mm

550 mm

575 mm

575 mm

Colter Disc

500 x 6 mm boron steel

500 x 6 mm boron steel

500 x 6 mm boron steel

500 x 6 mm boron steel

Scrapper

6 mm adjustable

6 mm adjustable

6 mm adjustable

6 mm adjustable

Bearings

2 Nos. Taper roller

2 Nos. Taper roller

2 Nos. Taper roller

2 Nos. Taper roller

Width Of Cut

500 - 550 mm

875-925 mm

1150-1200 mm

1575-1625 mm

Required Tractor

40 - 45 HP

50-60 HP

70-80 HP

90 HP & Above

Approx.Weigth

275 kg.

400 kg

500 kg

600 kg
