Product Description
We are a reliable firm in this domain, affianced in manufacturing and supplying quality approved Mounted MB Plough. The provided plough is manufactured using quality examined components by our diligent professionals at advanced production unit. This plough is used for sowing seed in agricultural industry. In addition to this, the offered Mounted MB Plough can be bought from us at cost effective rates.
Key Points:
-
Sturdiness
-
Corrosion resistance
-
Highly durable
-
Optimum strength

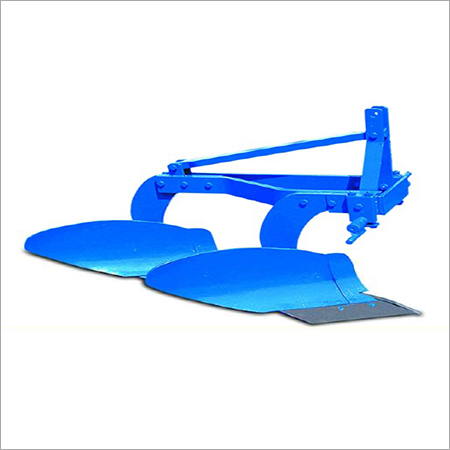

Mounted MB Plough
FEATURES:
- The under frame and unit-to-unit clearance are adequate to cope with trashy conditions.
- Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy.
- The plough has special wear-resistance steel bottoms with bar points for toughest ploughing jobs.
- Bar points bottoms ensure longer life as they can be extended or reserved or re-used till the last possible lenght.
Size | 2 FURROW | 3 FURROW |
Frame | 65 x 65 mm Box with 50 mm square | 65 x 65 mm Box with 50 mm square |
Type | 36 mm profile cut single piece | 36 mm profile cut single piece |
Length | 1310 mm | 200 mm |
Width | 740 mm | 740 mm |
Height | 1050 mm | 1100 mm |
Blade | 10 mm | 10 mm |
Mould Board Plate | 8 mm | 8 mm |
Shovel | 45 x 25 mm Bar {EN-42 Forged} | 45 x 25 mm Bar {EN-42 Forged} |
3 Point Linkage | 65 x 16 mm Flat & 32 mm square | 65 x 16 mm Flat & 32 mm square |
Clamp | 125 x 50 mm | 125 x 50 mm |
Width Of Cut (MAXIMUM) | 615 mm | 915 mm |
Depth Of Cut (MAXIMUM) | 350 mm | 350 mm |
Power Required (HP) | 40 HP | 55 HP |
Approx Weight | 240 Kg. | 355 Kg. |
