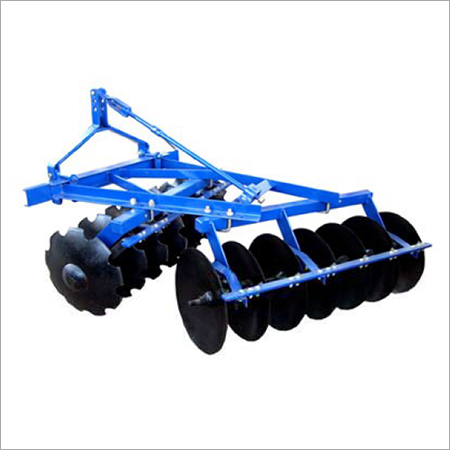

Mounted Offset Disc Harrow
To fulfill the demand of our valuable clients, we have been betrothed in manufacturing and supplying top quality Mounted Offset Disc Harrow. The offered harrow is manufactured using high grade components by skilled professionals at modern production unit. This harrow is ideal to be used for breaking up and smoothing out the surface of the soil. Additionally, the provided Mounted Offset Disc Harrow can be bought from us at market leading prices.
Key Points:
- Excellent strength
- Robust construction
- Highly durable
- Easy to use
Mounted Offset Disc Harrow
KEY FEATURES:
- High quality Boron steel discs.
- Easily transportable- as it gets easily attached and mounted.
- Tillage depth of the harrow is 6 inch.
- Maintenance is easy but need to be scheduled.
| | 6X6 | 7x7 | 8x8 | 9x9 | 10x10 |
| No. Of Discs | 12 | 14 | 16 | 18 | 20 |
| Frame | 75 x 10 mm Angle with 100 x 50 mm Channel | 75 x 10 mm Angle with 100 x 50 mm Channel | 75 x 10 mm Angle with 100 x 50 mm Channel | 75 x 10 mm Angle with 100 x 50 mm Channel | 75 x 10 mm Angle with 100 x 50 mm Channel |
| Gang Bolt | 32 mm Central square Solid Bar | 32 mm Central square Solid Bar | 32 mm Central square Solid Bar | 32 mm Central square Solid Bar with split gangs | 32 mm Central square Solid Bar with split gangs |
| Length | 2030 mm | 2080 mm | 2130 mm | 2230 mm | 2280 mm |
| Height | 1150 mm with 560 mm Disc 1200 mm with 610 mm Disc | 1150 mm with 560 mm Disc1200 mm with 610 mm Disc | 1150 mm with 560 mm Disc 1200 mm with 610 mm Disc | 1150 mm with 560 mm Disc 1200 mm with 610 mm Disc | 1150 mm with 560 mm Disc 1200 mm with 610 mm Disc |
| Distance Between Discs | 250 mm | 225 mm | 225 mm | 225 mm | 225 mm |
| Mounting | CAT. I / II (Optional) | CAT. I / II (Optional) | CAT. I / II (Optional) | CAT. I / II (Optional) | CAT. I / II (Optional) |
| Disc Diameter (mm) | 560 / 610 (Optional) | 560 / 610 (Optional) | 560 / 610 (Optional) | 560 / 610 (Optional) | 560 / 610 (Optional) |
| Type Of Discs | Notched in Front & Plain in Rear | Notched in Front & Plain in Rear | Notched in Front & Plain in Rear | Notched in Front & Plain in Rear | Notched in Front & Plain in Rear |
| Bearing Hubs (Nos.) | 4 | 4 | 6 | 8 (Split Gang Arrangement) | 8 (Split Gang Arrangement) |
| Width Of Cut | 1350 - 1400 mm | 1600 - 1650 mm | 1800 - 1850 mm | 2000 - 2100 mm | 2250 - 2300 mm |
| Power Required | 35 HP | 40 - 45 HP | 45 - 50 HP | 50 - 55 HP | 55 - 60 HP |
| Approx Weight (KG) | 425 with 610 mm Disc | 465 with 610 mm Disc | 510 with 610 mm Disc | 570 with 610 mm Disc | 625 with 610 mmDisc |
|
 |
