Product Description
Since our inception in the year 2012, we have been engrossed in manufacturing and supplying the best range of Poly Disc Harrow - Plough. The offered plough is manufactured using quality tested components by our skilled professionals with the aid of pioneering techniques. This plough is suitable to be used for cultivation of soil. Apart from this, the provided Poly Disc Harrow - Plough can be bought from us in bulk at pocket friendly rates.
Key Points:
-
Require less maintenance
-
Less maintenance
-
Robust construction
-
Optimum strength

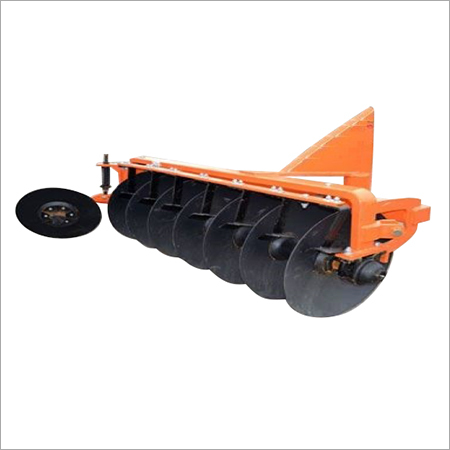

Poly Disc Harrow / Plough
FEATURES:
- Robust duty frame & axle
- Perfectly balanced for maximum ploughing result
- Requires minimum load even in tough soil conditions
Description | FKPDH-6 | FKPDH-7 | FKPDH-8 |
Frame | Rectangle Tubular Frame (125X95X8T) |
|
|
Gang Axle | Dia. 63mm SOLID BAR |
|
|
No. Of Disc | 6 | 7 | 8 |
Type Of Disc | Notched Or Plain Disc (OPTIONAL) |
|
|
Disc Diameter (mm) | 560 X4T/ 610 X 4 T/ 5T(20/24/26) |
|
|
Width Of Cut (mm Approx.) | 1449 | 1635 | 1882 |
Distance Between Discs | 228 mm |
|
|
Bearing Hubs | 2 Nos. |
|
|
Weight (Kg. Approx.) | 387 | 416 | 445 |
Power Required (HP) | 45-50 | 50-55 | 55-60 |
